With the rapid development of e-commerce, the environmental protection and protection of logistics packaging have become the focus of the industry. Although traditional foam plastic packaging has good cushioning properties, its negative impact on the environment cannot be ignored. As an alternative, pulp molded packaging is rapidly becoming the new standard in the e-commerce industry. This packaging made of recycled pulp is not only environmentally friendly and degradable, but more importantly, its excellent cushioning packaging performance is effectively reducing the product breakage rate in e-commerce logistics.

I. Current Challenges in E-commerce Shipping Damage

Product Damage Statistics in Logistics

Based on eMarketer’s most recent estimate, global e-commerce sales would rise to $8.1 trillion by 2026 from $5.7 trillion in 2023.  Shipping damage problems have grown ever more noticeable as e-commerce grows.  According to Packaging Manufacturers and Machinery Association (PMMI) research, almost 11% of e-commerce shipments suffer different degrees of damage during transportation; almost 3% of products are rendered totally useless, causing tens of billions of yearly economic losses.

Root Causes of Shipping Damage

Product damage during transportation mostly results from three kind of hazards:

· Throughout loading, sorting, and transportation, packages undergo several drops and shocks. According to data from the International Safe Transit Association (ISTA), packages experience an average of 17 drops in normal delivery paths; maximum drop heights reach up to 122 cm.
· Under stacked transportation and storage, bottom-layer packages could experience pressure equal to 5–10 times their own weight. DHL logistics studies indicate that poor stacking and compression account for about forty percent of package damage.
· Products can also be cumulatively damaged by environmental factors including temperature swings, humidity changes, and extended vibration. For electronics, glass products, and precision tools especially, this kind of damage is clearly visible.

Limitations of Traditional Packaging Solutions

For years, EPS foam (commonly known as Styrofoam) and bubble wrap have been the main cushioning materials for e-commerce packaging. While these materials provide good protection, they face serious environmental challenges:

· Environmental Burden: With a very low global recycling rate of less than 10%, EPS foam takes over 500 years to breakdown in natural surroundings.
· Because of their low density and great volume, foam plastics take a lot of space during storage and transportation, therefore raising running expenses for companies.
· Consumer Resistance: 78% of consumers say they prefer brands with environmentally friendly packaging as environmental awareness rises, hence under consumer boycott pressure traditional plastic packaging is under attack.

II. Structure and Properties of Molded Pulp Packaging

Manufacturing Process of Molded Pulp

Molded pulp packaging is produced using recycled paper pulp through special molding techniques to create three-dimensional cushioning packaging products. The basic manufacturing process includes:

1. Shred waste paper, cardboard, and other cellulose products then combine with water to create a paper pulp solution.

2. Based on product specifications, molded pulp mostly employs four forming techniques:

– Suitable for basic single-sided molded goods like egg trays, direct forming is
– Thermoforming, which uses heat and pressure to produce smooth surfaces fit for luxury packaging and goods needing exceptional surface quality,
– Usually used for electronic device inner packaging, transfer molding creates flat surfaces on both sides.
– Products with thicknesses more than 6mm produced by thick-wall molding fit heavy-duty product packaging needing high-strength protection.

3. With optional water-resistant, anti-mold, or flame-retardant treatments as needed, the wet-formed goods are dried using drying equipment.

Click Here To Know More Sustainable Packaging Solution!

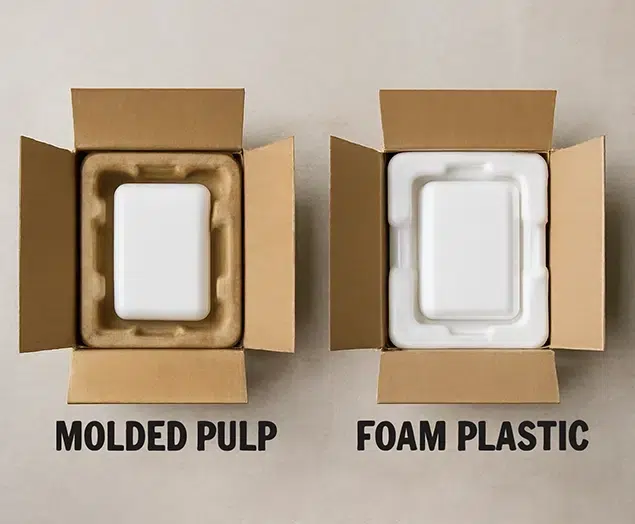

Performance Comparison Between Molded Pulp and Traditional Packaging

As 100% biodegradable packaging, molded pulp packaging has these major benefits over conventional plastic packaging materials:

1. Eco-friendly and biodegradable: Usually significantly faster than conventional plastic packaging, molded pulp products completely break down in natural surroundings within 2-6 months.
2. Customized molded pulp designs can exactly fit to product curves, therefore reducing packing volume by 30-50%, greatly lowering storage and transportation expenses.
3. Excellent Cushioning Performance: Quality molded pulp packing shows cushioning performance on many impact tests equivalent to EPS foam, and in some application situations it performs better.
4. Molded pulp packing offers all-around protection for items and strong structural strength and weight distribution, therefore deforming less under pressure.

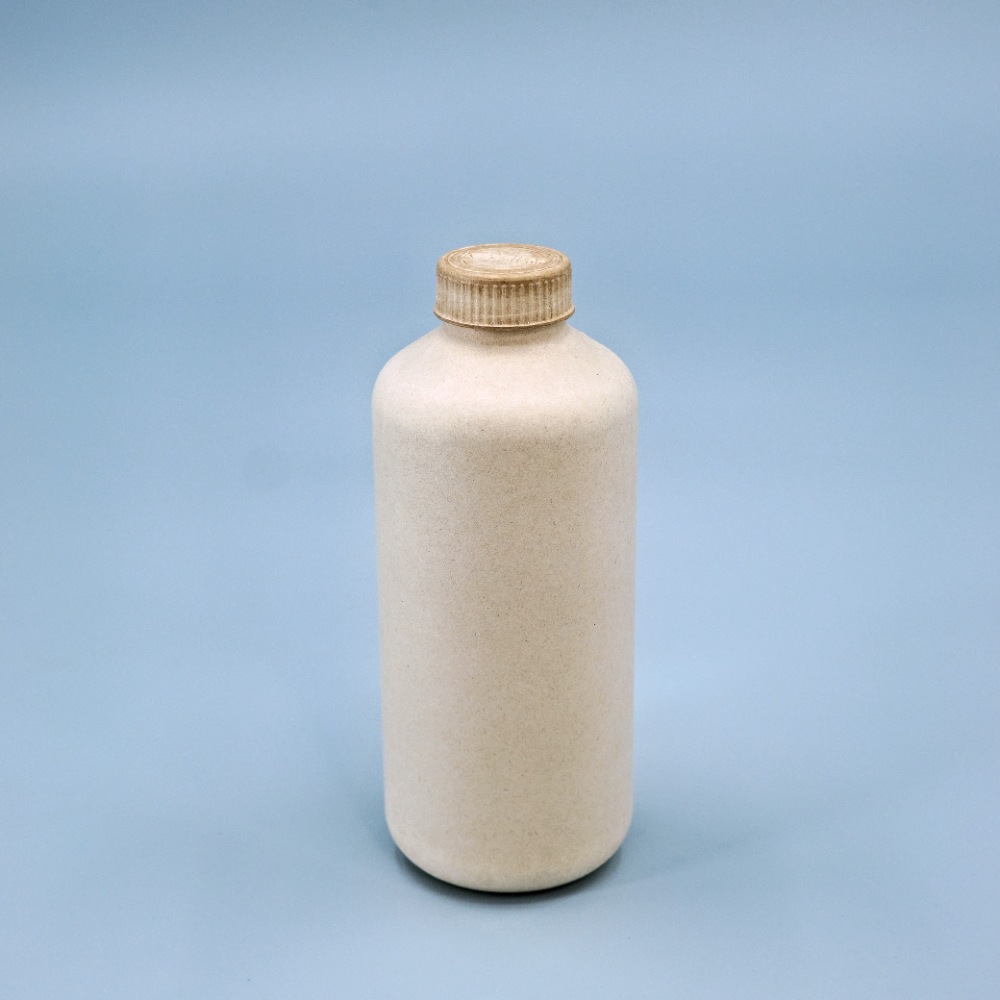

molded pulp bottle packaging

III. Cushioning Performance Data Analysis

Cushioning Performance Tests According to ASTM D4169 Standard

The American Society for Testing and Materials (ASTM) D4169 standard states that packaging performance evaluation calls for modeling several hazards products might encounter within the distribution chain. Many laboratories carried thorough comparative studies to evaluate the real protective value of molded pulp packaging.

The Drop Test (ASTM D5276) models package drops throughout distribution. The experiment consisted in 10 successive drops from a height of 76 cm using molded pulp and EPS foam packaging of same thickness, comprising same electronic items. Product G-values, or impact acceleration, dropped by an average of 23% in molded pulp packaging, therefore indicating far lower impact forces on the products.

Simulating pressure on packages in stacked situations, the Compression Test (ASTM D642) Comparable to medium-density EPS foam, test data suggest that thermoformed molded pulp packing can sustain pressure up to 4.2 kg per square centimeter without permanent distortion.

IV. Conclusion

Molded pulp packaging is rapidly becoming the new standard for reducing logistics damage rates in the e-commerce industry. Through scientific experiments and practical application cases, we can clearly see that quality molded pulp packaging not only provides cushioning protection comparable to or better than traditional foam plastics but also offers significant environmental advantages.

As material science continues to advance and production processes improve, the performance of molded pulp packaging will further enhance, and its application areas will continue to expand. For businesses pursuing sustainable development while hoping to reduce logistics damage and related costs, molded pulp packaging is undoubtedly a technological innovation worth investing in.
